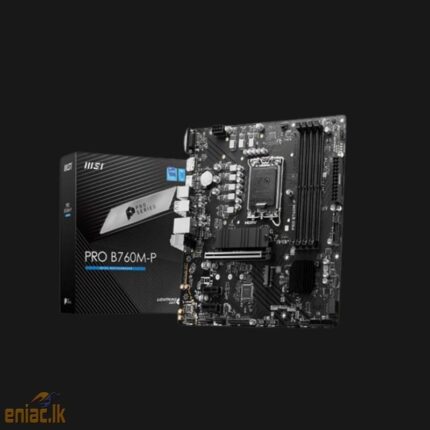

MSI PRO B760M P DDR5 MOTHERBOARD
Rs.50,500.00
MSI B760M-E PRO DDR5 MOTHERBOARD
Rs.42,500.00
- Brand: MSI
- Form Factor: Micro ATX
- CPU Socket Type: LGA 1700 (12th,13th,14th GEN)
- RAM TYPE: DDR5
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
3
People watching this product now!
Description
MSI B760M-E PRO DDR5 MOTHERBOARD
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA 1700 | |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 6400+ MHz | |
| • 1DPC 2R Max speed up to 5600+ MHz | |
| Supports Intel® XMP 3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Graphics | 1x HDMIâ„¢ |
| Support HDMIâ„¢ 1.4 with HDR, maximum resolution of 4K 30Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Storage | 1x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

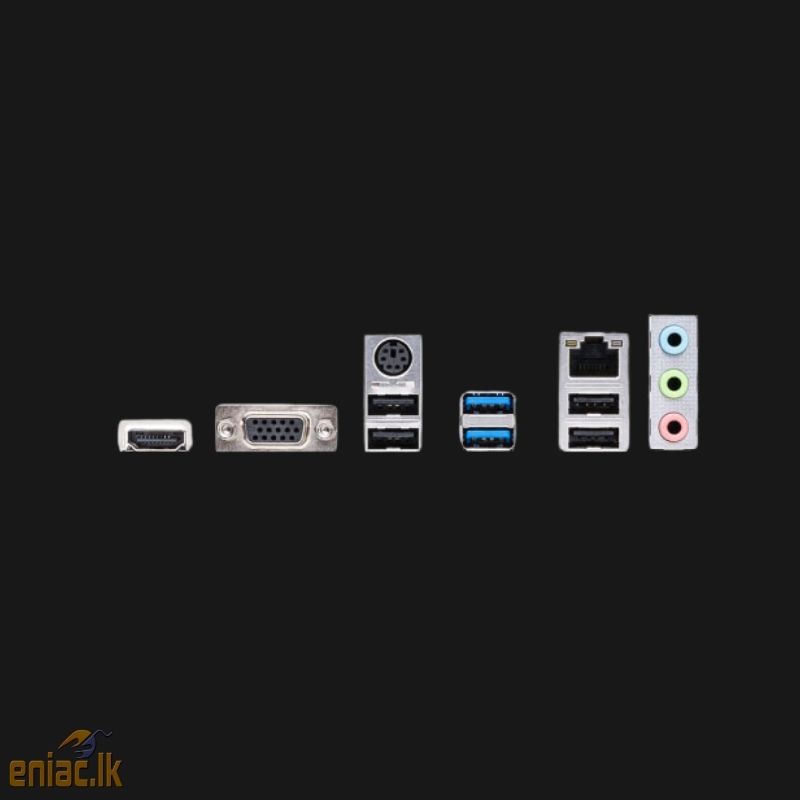

| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Rear) | |
| 2x USB 5Gbps Type A (Front) | |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
Additional information
| Weight | 2000 g |
|---|
