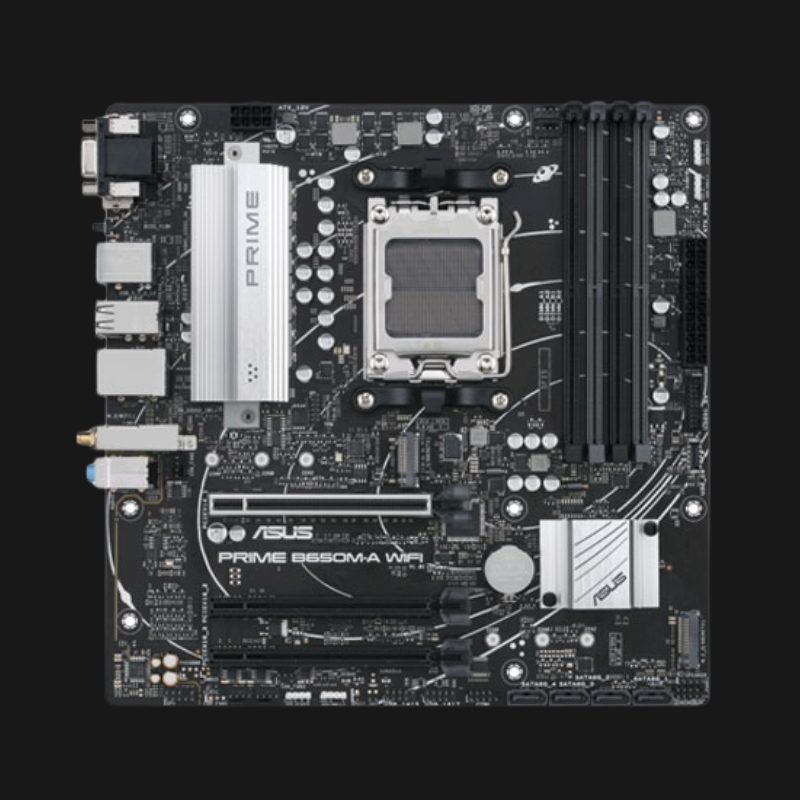

Asus Prime B650M-A Wi-Fi DDR5 Motherboard

High-Performance AMD AM5 Motherboard
The Asus Prime B650M-A Wi-Fi is a next-generation DDR5 motherboard designed for AMD Ryzen 7000, 8000, and 9000 series desktop processors. Powered by the AMD B650 chipset, it supports cutting-edge features, faster data rates, and enhanced connectivity.

DDR5 Memory with Overclocking Support
This motherboard features 4 x DDR5 DIMM slots supporting up to 128GB of memory. Compatible speeds include up to 5600MHz (OC), along with AMD EXPO profiles for one-click memory tuning. Dual-channel architecture ensures optimized performance for heavy tasks and gaming.

Advanced Graphics and Display Options
Built-in display outputs include DisplayPort 1.4 (up to 8K@60Hz), HDMI 2.1 (up to 4K@60Hz), and VGA. Note: integrated graphics depend on supported AMD CPUs.

Storage and Expansion Ready
Equipped with 2 x M.2 slots (including one PCIe 5.0 x4 slot) and 4 x SATA 6Gb/s ports, the board offers high-speed NVMe and RAID support. M.2_1 slot runs PCIe 5.0 with Ryzen 9000/7000 CPUs and PCIe 4.0 with Ryzen 8000 CPUs.

PCIe and Expansion Slots
Includes one PCIe 4.0 x16 slot (CPU-dependent x16/x8/x4 mode) and two additional PCIe 4.0 x1 slots powered by the B650 chipset. Great for future GPU or expansion card upgrades.

Integrated Wi-Fi 6 and Bluetooth 5.2
Stay connected wirelessly with dual-band Wi-Fi 6 and Bluetooth 5.2 support, built-in to the board with external antenna support for maximum signal quality.

Comprehensive Rear I/O and USB Options
The board includes 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0, DisplayPort, HDMI, VGA, Realtek 2.5Gb LAN, 3 audio jacks, PS/2 combo, and a BIOS FlashBack button.

Premium Audio and Protection
Featuring Realtek 7.1 surround audio codec with high-quality capacitors, EMI shielding, and dedicated PCB layers. ASUS 5X Protection III ensures durability with surge protection, SafeSlot Core+, and stainless steel I/O.

ASUS Exclusive Features
Bundled with software like Armoury Crate, Fan Xpert 2+, AI Suite 3, Aura Sync RGB support, and BIOS FlashBack. Designed for DIY users with Q-Slot, Q-DIMM, and BIOS EZ Flash 3.

Form Factor and Accessories
The board comes in a micro-ATX form factor (24.4 cm x 24.4 cm) and includes Wi-Fi antennas, I/O shield, SATA cables, M.2 screws, and user guide.
